Headworks

Duperon

Screens Built to Run Without Operators

Duperon

FlexRake Bar Screens, Dual Auger Rag Removal Systems, Washer Compactors, Rotary Drum Screens, Self-Cleaning Trashracks

  • Headworks
  • Conveyance
See Product Lines
Specialty Headworks
Founded / HQ 1985 • Saginaw, MI
About Duperon

Overview

Duperon Corporation builds mechanically cleaned bar screens for wastewater treatment plants, along with washing, compacting and conveying equipment, at its 70,000 square-foot facility in Saginaw, Michigan. The company traces its roots to the late 1970s, when founder Terry Duperon set out to protect stormwater pumps from debris; the Self-Cleaning Trashrack that resulted replaced manually cleaned bar screens, and Duperon was founded in 1985 as a privately held, family-owned business. FlexRake technology entered wastewater service in 1995, and its ability to adapt to changing debris conditions has driven the company’s growth since.

The FlexRake line runs from coarse screens with openings up to 4 inches (FP, FRHD and the FRO rake-only retrofit for existing bar racks) through fine screens down to 0.020 inch (FPFS, FS and the pipe-to-pipe FSB) to the GTS, IQ and IQ2 for low-flow, high-solids and variable-flow duty. All share the front-clean, front-return FlexLink design, which has no submerged sprockets, bearings or tracks and is serviced entirely from the deck; the FP and FPFS platforms carry a five-year warranty in wastewater applications. The City of Adrian’s FlexRake marked 20 years of continuous, trouble-free operation in 2018. Duperon describes itself as the leader in simple, adaptive screening technologies for coarse, fine, low-flow and ultra screening.

Visit Duperon Website
Featured Products

Product Lines We Represent

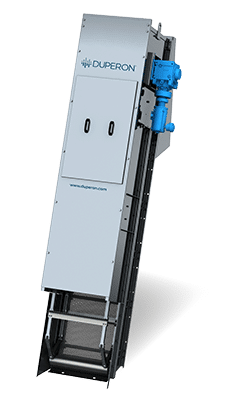

Duperon FlexRake IQ2 Self-Cleaning Bar Screen rendering with enclosed frame and top-mounted drive

FlexRake Bar Screens

0.020 in – 4 in Openings, Coarse to Fine

Front-clean, front-return mechanically cleaned bar screens on the FlexLink system: no submerged sprockets, bearings or tracks, every part serviced from the deck. Nine FlexRake models cover coarse (FP, FRHD, FRO), fine (FPFS, FS, FSB) and low-flow, high-solids duty (GTS, IQ, IQ2).

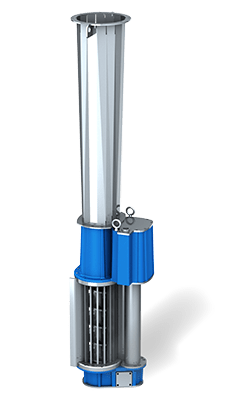

Duperon Dual Auger System rendering showing the vertical stainless column and twin auger screening section

Dual Auger System (DAS)

¾ in Bar Opening

In-channel dual auger system that separates and removes rags and fibrous material upstream of pumps.

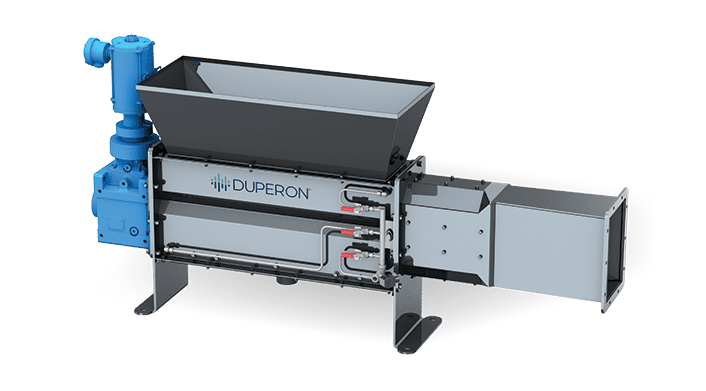

Duperon Washer Compactor rendering with feed hopper, wash housing, and discharge chute

Washer Compactor

Consistent Results in Variable Flow and Debris Conditions

Screenings washing and dewatering compactor that reduces volume, odor, and haul-off frequency.
Duperon SmartWave Septage Receiving Screen rendering with twin vibratory motors, perforated panels and inlet pipe

SmartWave Septage Receiving Screen

3/16 in Perforated Panels, No Rock Trap

Controlled-vibration septage screen: twin rotary motors move rags, wipes, grit and FOG across 3/16 in perforated panels to discharge, with no brushes, scrapers or rock trap. Offered through Duperon's 2-4 week Pilot Test Program.
Duperon Self-Cleaning Trashrack rendering, inclined bar rack with lifting chains and top-mounted drive

Self-Cleaning Trashrack

2 in – 3 in Bar Openings

Front-cleaning, rear-return trash rake for flood control, stormwater and water intakes. Independent chains with 3,000 lb lifting capacity clear logs and large debris across the whole screen, 5-10 ft wide and up to 100 ft long. Five units guard Dallas's Hampton Road Pump Station.
Duperon Internally Fed Drum Screen, stainless drum housing with side-mounted direct drive and discharge chute

Internally Fed Drum Screen

Fine Screening for MBR, No Trunnion Wheels

Rotary drum for high-flow, high-solids fine screening ahead of MBR, IFAS and MBBR. Stainless shoes and water-lubricated wear strips replace trunnion wheels, chains and sprockets, with quick-change screen panels. Offered through Duperon's 2-6 week Pilot Test Program.
Frequently Asked

Duperon FAQ

Yes. Duperon manufactures in Saginaw, Michigan. For projects funded through the Clean Water State Revolving Fund (CWSRF), Drinking Water SRF, or any federal infrastructure dollars subject to Build America, Buy America (BABA) requirements, Duperon can provide the documentation your engineer needs to certify domestic content. This matters more every year as more TX municipal projects pull from federal funding sources. Vision Equipment can request a current BABA compliance letter for any specific project on request.

Yes – that’s the headline feature. All routine maintenance (rake inspection, scraper replacement, drive service) happens at deck level. There are no submerged bearings or sprockets to rebuild from below the waterline. For plants where confined-space entries are a recurring O&M cost (permit time, attendant labor, OSHA exposure), this alone usually justifies the upgrade math.

The FlexRake delivers wet screenings to a chute or conveyor; the washer/compactor takes that material, washes the organics back into the flow stream, and squeezes water out before discharging into your dumpster. Result: lower haul weight, lower disposal cost, and a dumpster that doesn’t reek. For plants paying by the ton on screenings disposal – or fielding odor complaints from neighbors – this is usually where the operating cost savings show up on the spreadsheet.

Downloads

Line Sheets & Spec Sheets

Project References

Texas Installations

References Available Upon Request

Project references for this manufacturer are available upon request. Contact a Vision Equipment rep to discuss recent Texas installs and comparable applications.

Request References

Ready to learn how Duperon can improve your project?

Talk to a Vision Equipment rep about sizing, submittals, and lead times for your Texas project.

Water You Waiting For??
