Headworks

CleanTek

Home of the Roto-Sieve Drum Screen

CleanTek Water Solutions

Roto-Sieve Drum Screens and Septage Receiving Units, Lackeby SBR Decanters, Sludge Heat Exchangers

  • Headworks
See Product Lines
Specialty Headworks
Founded / HQ 2009 • Arden Hills, MN
About CleanTek

Overview

CleanTek Water Solutions supplies equipment for process water, industrial wastewater and municipal wastewater applications: screening, dewatering, decanting, conveying and energy recovery products for both markets. Its range runs from the Roto-Sieve internally fed drum screen to the Lackeby sludge heat exchanger, with a stated focus on cost-effective, high-performance technologies engineered for high efficiency, reduced maintenance and low energy consumption, backed by representatives covering North America.

Visit CleanTek Website
Featured Products

Product Lines We Represent

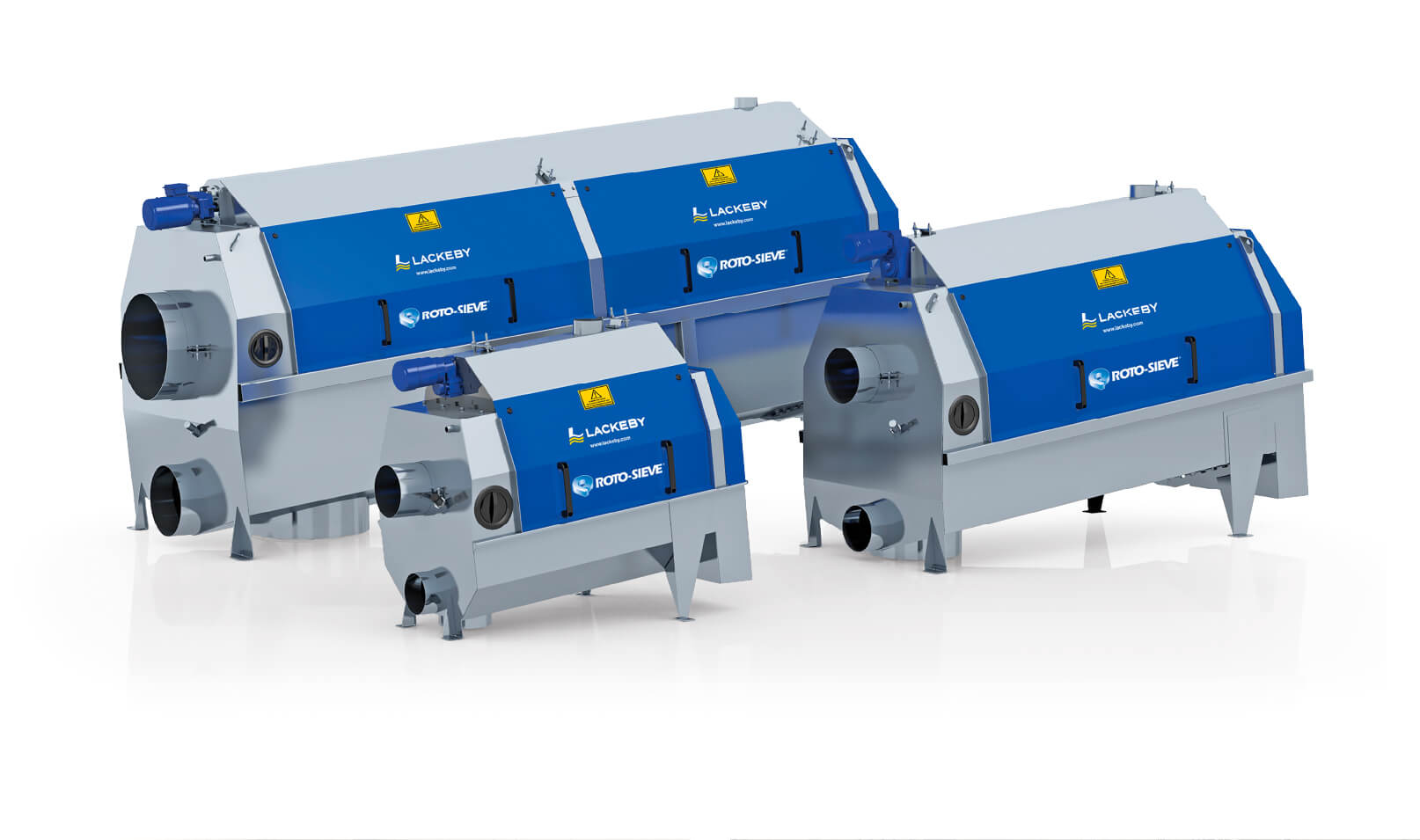

Three Lackeby Roto-Sieve rotary drum screens, small to large models, in blue and stainless steel housings

Roto-Sieve Rotary Drum Screen

Internally Fed Fine Screening for MBR Protection

Internally fed, self-cleaning inclined drum screen for MBR pre-screening, primary and sludge screening. Seven models (RS-11 to RS-416), 0.6 to 6 mm perforations, 0.2 to nearly 10 MGD per unit. No trunnion wheels and no vertical or slotted seals, so no bypass around the drum.

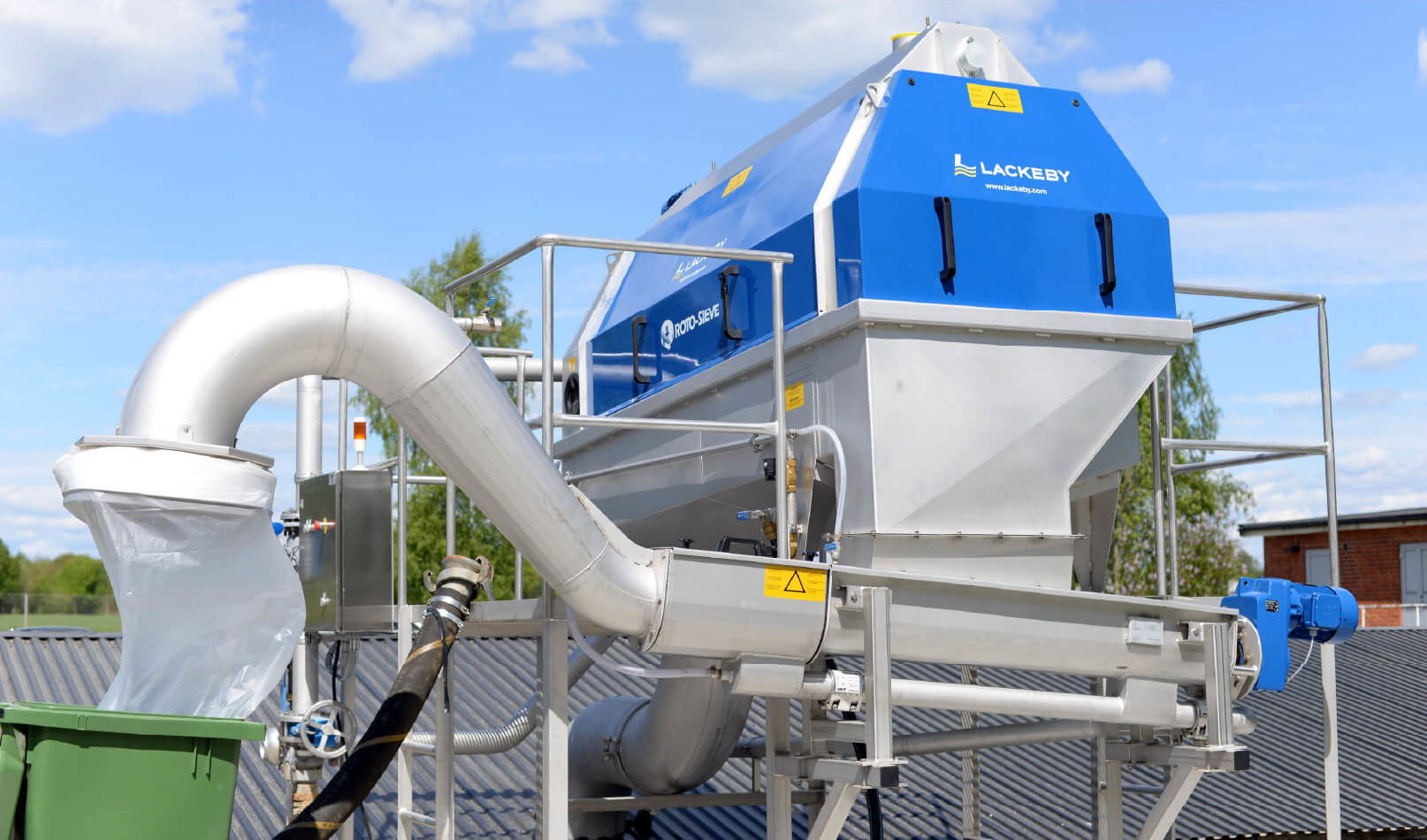

Lackeby Roto-Sieve septage receiving unit with hauler connection and drum screen housing

Roto-Sieve Septage Receiving Unit

Drum-Screen Septage Receiving Without Rock Traps

Internally fed, self-cleaning drum screen sized for the heavy solids loads of hauled septage, with no rock trap, grinder or holding tank ahead of it. Septage feeds straight into the drum for mechanical separation, so trucks unload quickly and daily rock-trap cleaning goes away.

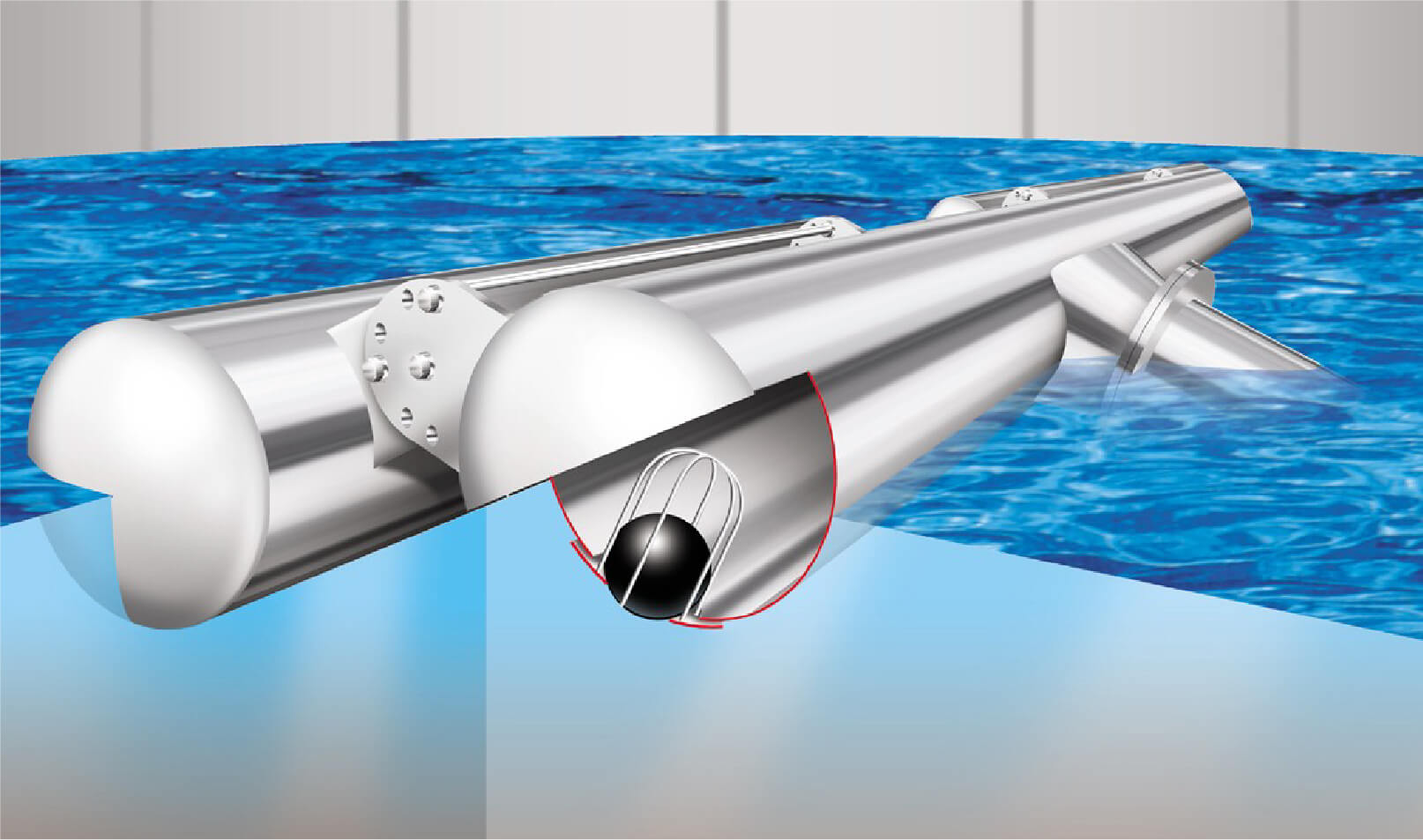

Cutaway rendering of a Lackeby SBR Decanter floating on pontoons with the solids-excluding ball visible inside the decant pipe

SBR Decanter

Floating Gravity Decanter for SBR Basins

Pontoon-floated decanter for SBR basins. Draws effluent through multiple orifices just below the surface; a patented solids-excluding ball mechanism closes on differential pressure during aeration, with no conventional valves or pumps. Built in 304 or 316 stainless steel.

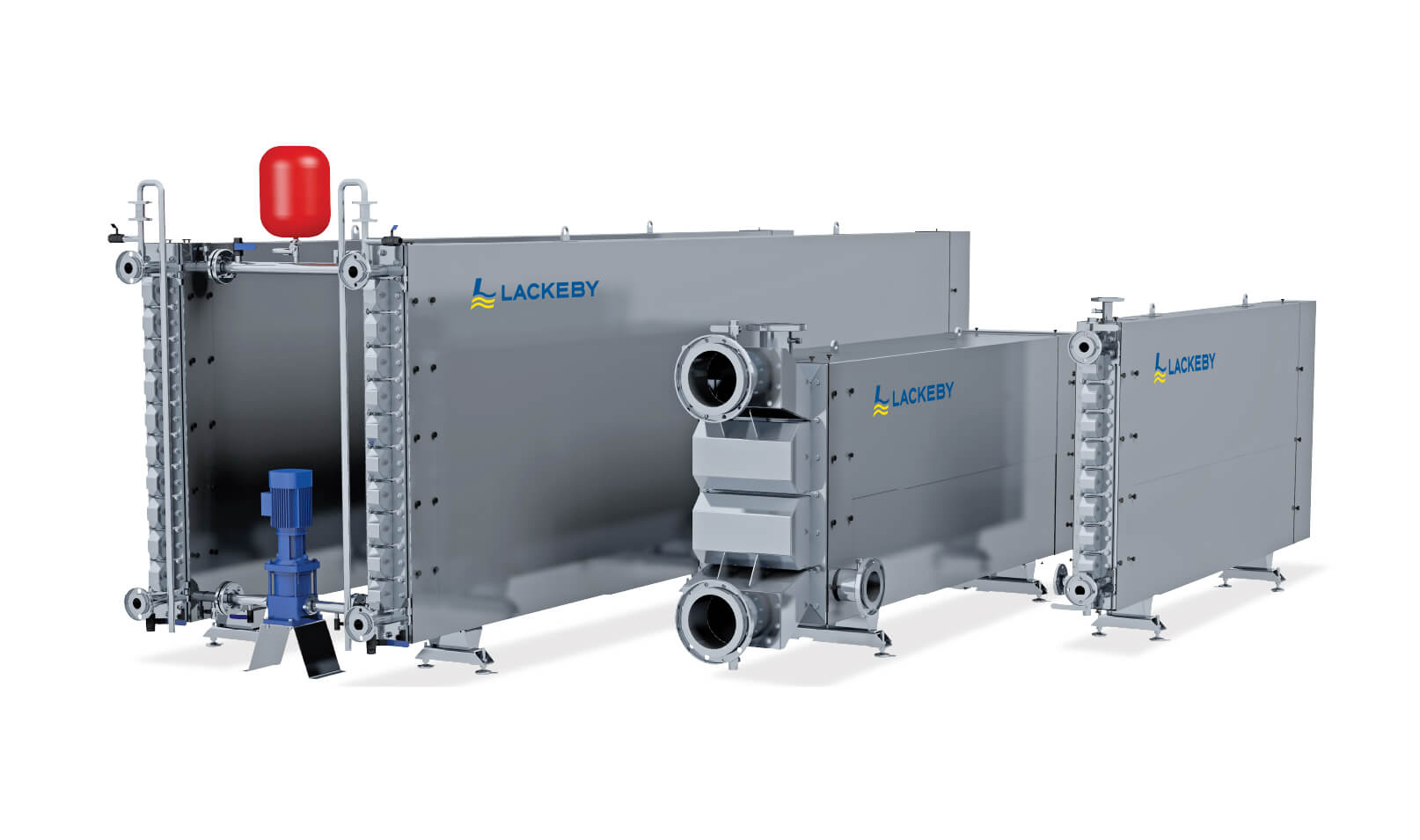

Three Lackeby stainless steel sludge and water heat exchanger units with flanged sludge connections and a circulation pump

Lackeby Sludge Heat Exchanger

Tube-In-Shell Sludge Heating for Digesters

Modular tube-in-shell sludge and water heat exchanger that heats or cools raw and digested sludge at anaerobic digesters. 316 stainless sludge tubes, duplex wetted parts, five tube diameters, 1 to 4 tubes per level, 2 to 22 levels; built to ASME Section VIII, Division I.
Downloads

Line Sheets & Spec Sheets

Project References

Texas Installations

References Available Upon Request

Project references for this manufacturer are available upon request. Contact a Vision Equipment rep to discuss recent Texas installs and comparable applications.

Request References

Specifying a CleanTek system?

Talk to a Vision Equipment rep about sizing, submittals, and lead times for your Texas project.

Talk to a Rep About CleanTek
