Executive Summary
An oxidation ditch is a continuous-loop biological treatment basin that relies on mechanical aeration to hold dissolved oxygen (DO) and keep the mixed liquor moving. When brush rotors age out — bearing wear, shaft fatigue, declining mechanical stability — DO falls, treatment degrades, and the facility drifts toward permit risk.
For an engineer scoping a mechanical aeration upgrade at a Texas oxidation ditch, this memo covers the disc rotor conversion pathway: how it works, what changes after installation, and which plant conditions make it the right fit.
Why Aging Brush Rotors Stop Holding DO
Brush rotors fail in a predictable sequence. Bearing wear, shaft fatigue, and mechanical instability accumulate over years of continuous operation. Oxygen transfer efficiency declines gradually, then drops faster as mechanical problems compound.
A brush rotor aerates by partially submerging in the ditch channel. As bearings degrade and shaft deflection increases, the rotor’s effective immersion depth changes. The system transfers less oxygen per revolution. Operators compensate by overdriving horsepower, which drives up maintenance costs and energy consumption without recovering the lost transfer performance.
At oxidation ditches originally designed for small WWTPs with high TCEQ discharge limits, the process begins to fail when it exceeds 70% of its rated capacity in some instances. Texas summer heat compounds the problem — reduced oxygen solubility at elevated water temperatures pushes demand past what degraded mechanical aeration can deliver.
The symptoms are recognizable: declining DO readings despite increased horsepower, rising energy costs, and more frequent bearing and shaft repairs.
How a Disc Rotor Conversion Works
A disc rotor replaces a brush rotor directly in the same footprint. The conversion does not require process changes, basin dewatering, or civil modifications. In applications where discharge limits can be restored with improved aerators, this is a plug-and-play upgrade.
Installation characteristics of the Envirodyne Systems disc rotor platform:
- Direct replacement in the same footprint as the existing brush rotor
- High density polystyrene disc material of construction provides extended component life
- Split disc design allows for easy and quick installation of new discs
- Existing torque tube may be re-used
The split disc construction is a practical feature for installation and future maintenance — discs can be mounted onto the torque tube in the field without removing the entire assembly from the basin.
Because the conversion stays within the existing basin geometry, it avoids the capital disruption of a full process conversion. Plants that do not require fine-bubble aeration get a cost-effective and mechanically reliable solution without rebuilding infrastructure.
What Changes After the Conversion
Disc rotors improve oxygen transfer through a different mechanism than brush rotors. Increased immersion depth puts more rotor surface in contact with the wastewater, and the disc geometry enhances mixing across the basin. The result is a more stable mechanical platform with longer bearing life.
Performance outcomes documented by Envirodyne Systems:
- Higher lb O₂/hp/hr transfer efficiency than brush rotors
- Increased immersion, aeration capacity, and mixing
- Reduced shaft deflection and bearing stress
- Smooth operation that extends mechanical component life
- Reduced misting and aerosol formation for clean and safe operation
The energy trade-off works two ways. A facility can either deliver the same aeration capacity at reduced energy consumption, or deliver increased capacity while maintaining its current energy consumption. A plant running near capacity might choose the second framing: hold energy flat but gain headroom for growth. A plant running within capacity might prefer the first: hold DO performance steady and reduce the power bill.
Where a Disc Rotor Conversion Fits
Not every oxidation ditch is a candidate for a disc rotor conversion. Some conditions — like tightening nutrient limits or the need for process redundancy — point toward a different technology. Use this table to match your plant’s current situation to the right pathway.
| Condition at your plant | What it means for a disc rotor conversion |
|---|---|
| Brush rotors worn but basin, drive platform, and torque tube are sound | Good fit — direct replacement in the same footprint; existing torque tube may be re-used |
| Need more oxygen transfer from the same basin, no process change | Good fit — higher lb O₂/hp/hr than brush aerators via increased immersion and mixing |
| Budget cannot carry dewatering or civil work | Good fit — no process conversion, no dewatering, no civil modifications |
| Misting or aerosols are an operator or neighbor complaint | Good fit — reduced misting and aerosol formation |
| Designing a new ditch and want to avoid a redundant basin | Discuss first — see TCEQ Chapter 217 note below; confirm with your engineer of record and TCEQ |
| Tightening TN/TP limits, need BNR capability | Different pathway — see fine-bubble aeration conversion |
| Cannot take equipment out of service without a redundant basin | Different pathway — see fine-bubble aeration conversion |
If your facility requires full fine-bubble conversion or TCEQ removable compliance, see Vision Equipment’s companion resource on retrievable fine-bubble aeration retrofit from Jaeger-Aeration.
TCEQ Chapter 217 and Removable Aeration
TCEQ Chapter 217 (30 TAC Chapter 217, Design Criteria for Domestic Wastewater Systems) sets the redundancy rule that decides whether an oxidation ditch needs a second basin.
Under 30 TAC 217.153(c)(1), a facility with a design flow at or above 0.4 MGD must have a minimum of two aeration basins and two clarifiers — and the aeration basins are exempt from that requirement only “if the aeration equipment, including the diffusers, is removable without taking the aeration basin out of service.”

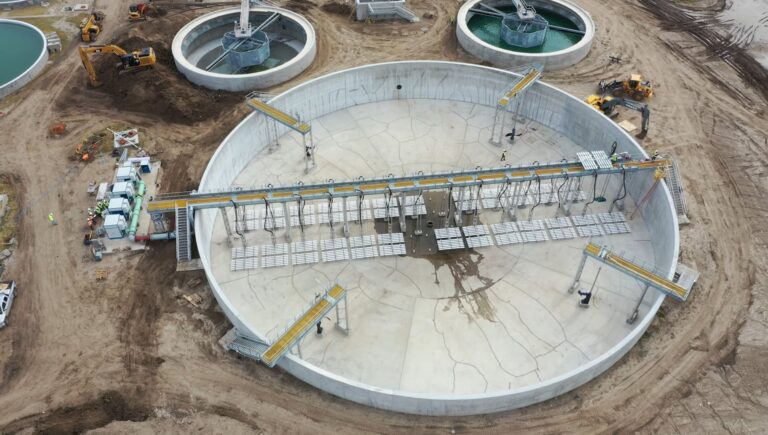

If avoiding a second basin is the driver, the pathway is retrievable fine-bubble aeration, where the diffuser racks lift out for service without dewatering — see our retrievable fine-bubble aeration retrofit guide with Jaeger-Aeration.
Whether Chapter 217 applies to your project at all is a separate question. The chapter governs facilities constructed or renovated after its adoption and does not otherwise reach existing facilities, so whether a given retrofit triggers it is a determination for your engineer of record.
Scoping and Procurement Notes for Texas Plants
Vision Equipment holds the exclusive rights to represent Envirodyne Systems and their equipment in Texas. ESI has been upgrading and converting oxidation ditches for over 20 years, with references from coast to coast and many references in Texas.
A disc rotor conversion assessment typically starts with your basin geometry, current rotor configuration, torque tube condition, DO targets, and flow data. Contact Vision Equipment for a preliminary scope review or to request project references matched to your facility type.
About Envirodyne Systems
Envirodyne Systems Inc. (ESI) designs disc rotor oxidation ditches for high-efficiency oxygen transfer and mixing in biological wastewater treatment. Their disc rotor platform is used as an alternative to traditional brush rotors, built around durability and energy efficiency.
ESI has been upgrading and converting oxidation ditches for over 20 years. Vision Equipment is the exclusive Texas representative for ESI equipment. For the full Envirodyne product line and company background, see the Envirodyne Systems manufacturer page.
References and Sources
- Envirodyne Systems / Vision Equipment. Brush Rotor to Disc Rotor Conversion for Oxidation Ditches — Tech Memo, Winter 2026.
- Envirodyne Systems / Vision Equipment. Oxidation Ditch Fix with Disc Rotors — Tech Memo, Winter 2026. PDF.
Frequently Asked Questions
How do I know my brush rotors are the problem and not the process?
Look for the mechanical symptoms first. Declining oxygen transfer despite steady or increasing runtime, rising maintenance frequency, bearing wear, shaft fatigue, and mechanical instability all point to equipment degradation rather than a process shortfall.
If your plant is well below its rated capacity and still struggling with DO, the rotors are the likely root cause. At facilities originally designed for high TCEQ discharge limits, the process itself can begin to fail when it exceeds 70% of rated capacity in some instances — so both equipment condition and hydraulic loading need evaluation.
Can a disc rotor replace a brush rotor without rebuilding the basin?
Yes. A disc rotor installs directly in the same footprint as the existing brush rotor. The conversion does not require process changes, basin dewatering, or civil modifications. In applications where discharge limits can be restored with improved aerators, Envirodyne Systems describes this as a plug-and-play upgrade.
Can I re-use my existing torque tube?
The existing torque tube may be re-used. ESI evaluates each installation to determine whether the existing tube is suitable for the new disc rotor assembly. The split disc design allows new discs to be installed onto the torque tube without removing the entire assembly from the basin.
How much more oxygen do disc rotors transfer than brush rotors?
Disc rotors deliver higher lb O₂/hp/hr transfer efficiency than brush rotors. The improvement comes from increased immersion depth — more disc surface in contact with the wastewater — and enhanced mixing across the basin.
No published transfer-rate comparison table is available from ESI at this time. Contact Vision Equipment for project-specific sizing and oxygen transfer estimates based on your basin dimensions and DO targets.
Will a conversion lower my aeration energy cost?
The energy outcome depends on how the conversion is sized. A disc rotor conversion can deliver the same aeration capacity at reduced energy consumption, or it can deliver increased capacity while maintaining current energy consumption.
Which framing applies depends on your facility’s DO targets, flow conditions, and the sizing specifications developed for your basin. No published percentage reduction is available — actual energy changes are project-specific.
Will disc rotors reduce misting and aerosols?
Yes. Disc rotors reduce misting and aerosol formation compared to brush rotors. ESI describes this as “reduced misting for clean and safe operation.” If misting is an operator concern or a neighbor complaint at your facility, this is one of the direct operational improvements a conversion delivers.
Are there Texas disc rotor references?
Envirodyne Systems has been upgrading and converting oxidation ditches for over 20 years, with references from coast to coast and many references in Texas. Vision Equipment holds the exclusive Texas rights for ESI equipment and can match project references to your facility type on request.
Contact Vision Equipment to request references relevant to your project.
